SAML Authentication

Overview

SAML (Security Assertion Markup Language) is a widely used authentication protocol that enables Single Sign-On (SSO). It allows users to authenticate once with an Identity Provider (IdP) and gain access to multiple services without needing to log in again.

⚠️
SLO (Single Logout) Not Supported

Single Logout (SLO) is not supported in this implementation.

⚠️
Mutual Exclusion of OpenID and SAML

If OpenID authentication is enabled, SAML authentication will be automatically disabled.

Only one authentication method can be active at a time.

Authentication Method Activation Based on Environment Variables

The following table indicates which authentication method is enabled depending on the environment variable settings:

OIDCSAMLActive Authentication Method
✅Enabled❌DisabledOpenID Connect (OIDC)
❌Disabled✅EnabledSAML
✅Enabled✅EnabledOpenID Connect (OIDC)
❌Disabled❌DisabledNo authentication enabled

SAML Certificate Format and Configuration

The SAML_CERT environment variable is used to specify the Identity Provider’s (IdP) signing certificate for validating SAML Responses. This certificate must be provided in PEM format and can be specified in one of the following ways:

As a File Path (Relative or Absolute)

If SAML_CERT is set to a file path, the application will load the certificate from the specified file. Both relative paths and absolute paths are supported.

# Relative path (resolved based on the application root)
SAML_CERT=idp-cert.pem

# Absolute path
SAML_CERT=/path/to/idp-cert.pem

Example File Content (idp-cert.pem):

-----BEGIN CERTIFICATE-----
MIIDazCCAlOgAwIBAgIUKhXaFJGJJPx466rl...
-----END CERTIFICATE-----

As a One-Line PEM String

The certificate can also be provided as a one-line PEM string (Base64-encoded, without line breaks).

SAML_CERT="MIICizCCAfQCCQCY8tKaMc0BMjANBgkqh...W=="

This format is useful when storing the certificate directly in environment variables.

As a Multi-Line PEM String (with \n escape sequences)

The certificate can also be provided as a multi-line PEM string where newlines are represented as \n.

SAML_CERT="-----BEGIN CERTIFICATE-----\nMIIDazCCAlOgAwIBAgIUKhXaFJGJJPx466rl...\n-----END CERTIFICATE-----\n"

This format is useful when configuring certificates in .env files while preserving the full PEM structure.

Certificate Format Requirements

  • The certificate must always be in PEM format (Base64-encoded X.509 certificate).
  • If provided as a file, it must be a valid RFC7468 strict textual message PEM format.
  • When using a one-line certificate, ensure there are no line breaks in the value.
  • When using a multi-line string, ensure newlines are represented as \n escape sequences.

For more details, refer to the node-saml documentation.

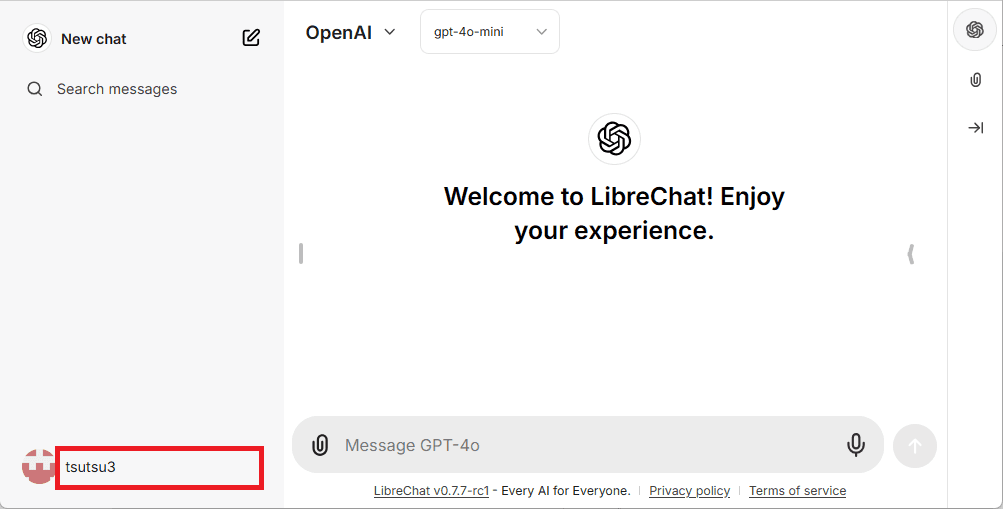

Display Username Determination Flow Based on SAML Attributes

auth0-1

In SAML authentication, the display username is determined according to the following flow.

Determination Rules

  1. If SAML_NAME_CLAIM is provided, its value is used as the display username.
  2. If both SAML_GIVEN_NAME_CLAIM and SAML_FAMILY_NAME_CLAIM are provided, their corresponding values are concatenated to form the username.
  3. If only SAML_GIVEN_NAME_CLAIM is provided, its value is used.
  4. If only SAML_FAMILY_NAME_CLAIM is provided, its value is used.
  5. If SAML_USERNAME_CLAIM is provided, its value is used.
  6. If none of the above attributes are provided, SAML_EMAIL_CLAIM is used as the display username.

By following this flow, an appropriate username is determined during SAML authentication.
